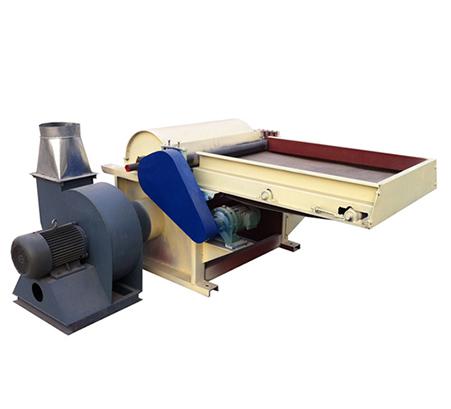

Opening and blending machine for cotton blending and cotton cleaning is mainly used to open the materials like fiber, cotton and fabrics by tearing apart large chunks of fiber into small chunks or wisp, as well as mixing and cleaning. Then the cotton would be conveyed to next process by air blower.
According to customers’ needs, we have manufactured three types of cotton opener for your choice:
Cylinder :
Pin Board/ Carding Cloth
900 -1100RPM
Working Width:
1000mm
1300mm
1500mm
Capacity:
≤250kg/h
≤300kg/h
≤500kg/h
Machine Size
2100*1500*1050mm
2600*1800*1.50mm
3100*2000*1050mm
Power
5.5kw
7.5kw
9kw
weight
500kg
800kg
1000kg
Please note: Only part of cotton openers we manufactured are displayed here, we can redesign for you according to your needs.
Features
The main frame is welded by 10mm carbon steel plate and steel channel. Otherwise, the main frame receives special handling for reliving the stress totally and increasing the frame strength.
The cylinder for opening cotton of the cotton opener we manufactured adopts pinned staves spike board or specially made gear rack, in order to prolong cylinder service life and do little damage to the fibers.

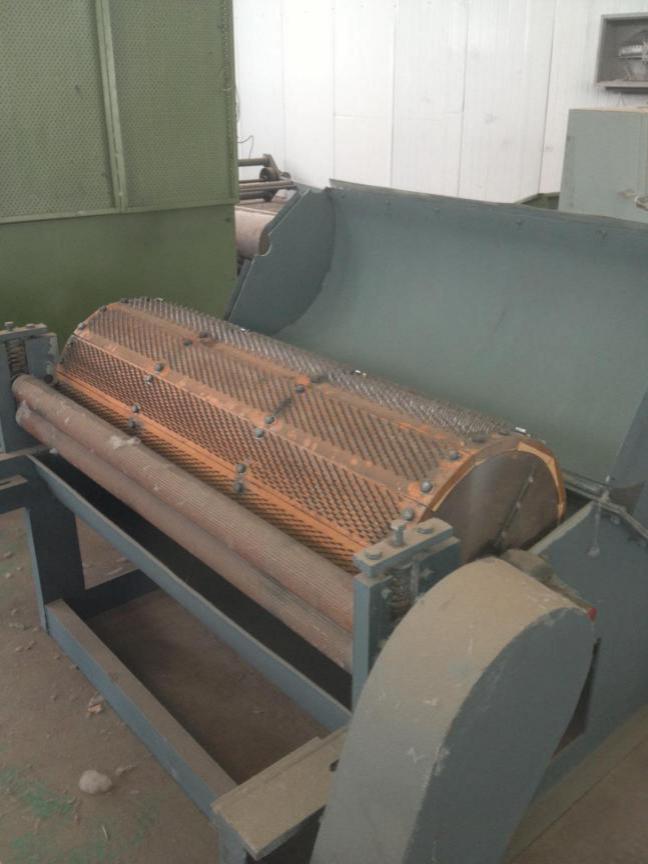

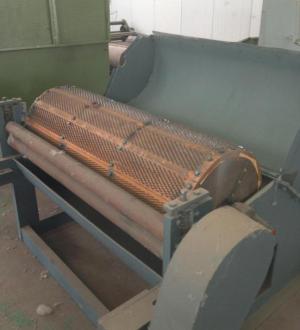

Spike Lattice Opener

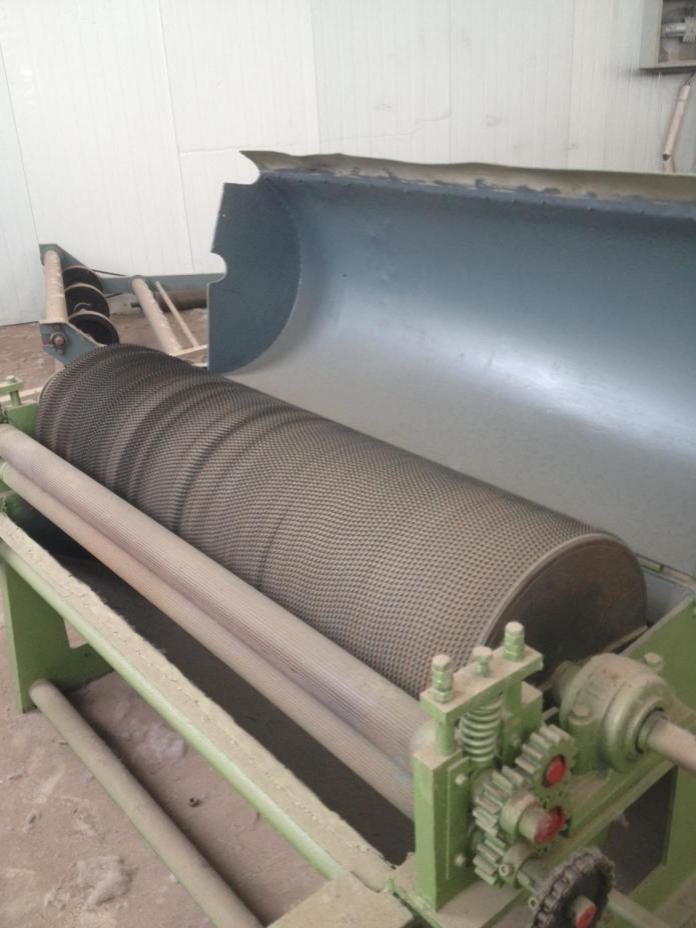

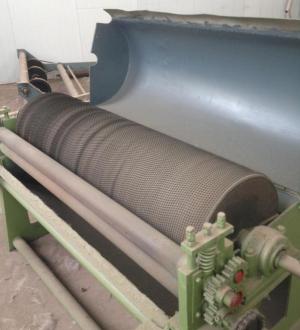

Rack Opener

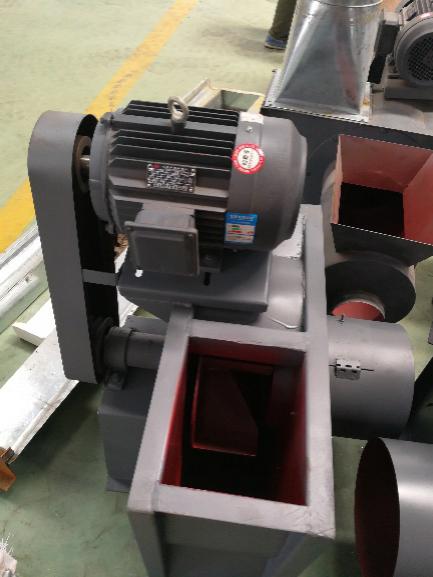

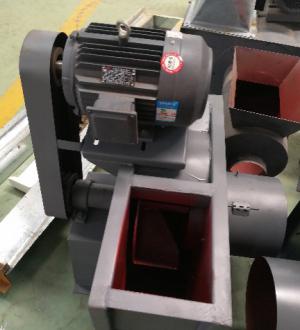

The blower for conveying cotton is high speed centrifugal fan with adjustable air volume and balanced running.

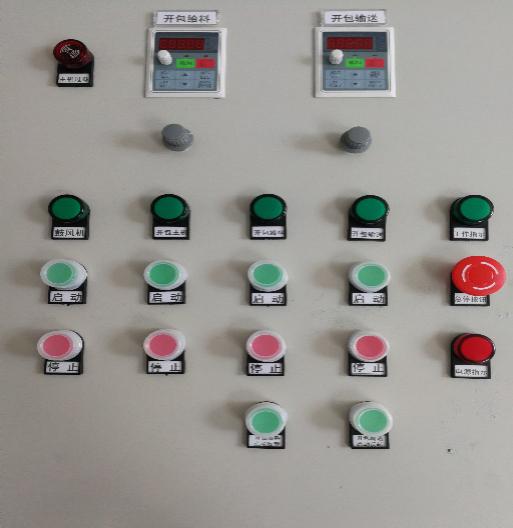

The feeding process is controlled by PLC, which is easy to operate. Problems like material stuck can be easily solved.

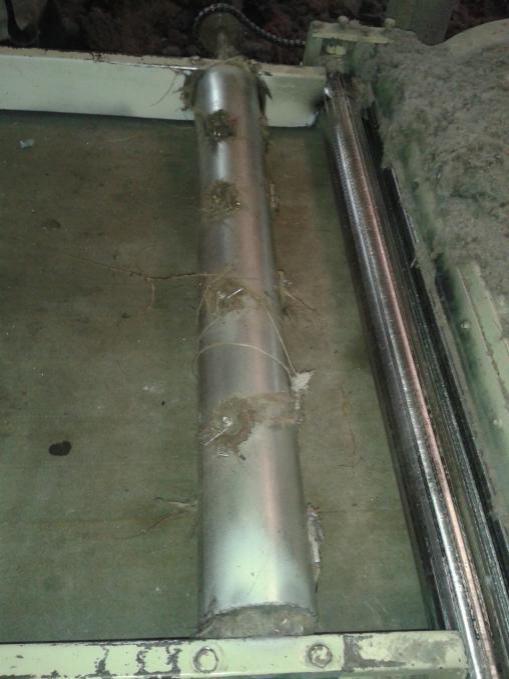

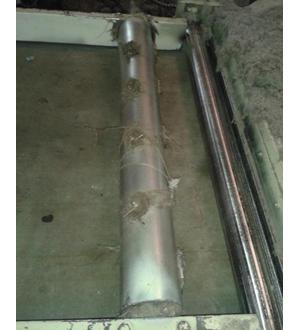

Strong magnetic roller for cleaning can absorb the metals in fibers effectively, preventing the metals from entering into the equipment and damaging the working roll.
Linyi Yuelong Nonwoven Equipment Co., Ltd. specializes in the research, design, production, and exportation of a full line of non-woven equipment. Offering both standard and customized products, our non-woven machinery is often used for the production of mattresses, shoes, bedding and more. Using raw materials from only the most trusted names in the industry, such as Schneider, we guarantee the quality and reliability of each of our machines in meeting your exact needs.
Before Processing
After Processing
