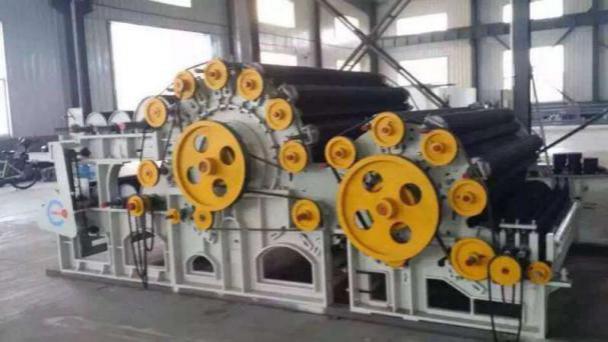

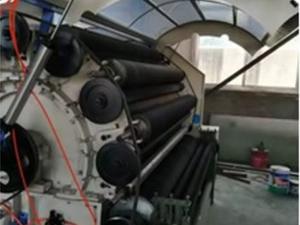

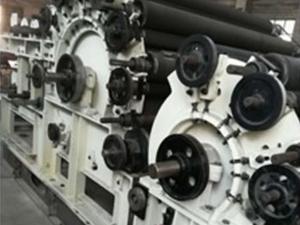

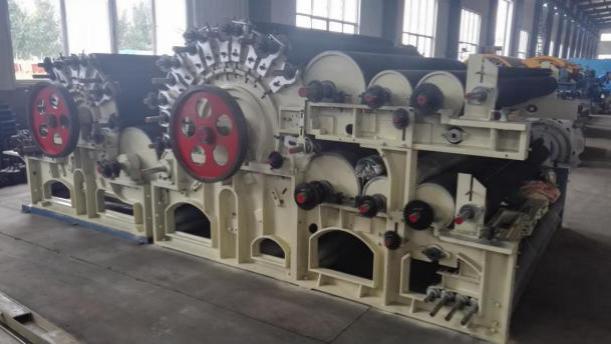

Double cylinder double doffer carding machine is used to disentangles and intermixes the preprocessed spinning to produce fiber web. There are different types of carding machine with different structures depending on the type of fiber and process requirements. This double cylinder double doffer carding machine is equipped with 2 cylinders with diameter of 1230mm and 850mm respectively and 2 doffers with diameter of 635mm. Thanks to the design of double cylinder, better carding effect can be achieved. Besides, this double cylinder double doffer carding machine can not only card new fiber, but also can card recycled waste fiber effectively. The carded fiber by this double cylinder double doffer carding machine is more uniform and continuous.
Product | Single cylinder double doffer carding machine |
Working Width(mm) | 1520mm,2020mm,2220mm |
Output Speed: | 20-55m/min |
Doffer Diameter: | 535mm*1 |
Cylinder Diameter: | 1020mm*1 |
Carding type: | Cutting die or roller |
Fiber Feeding | Controlled by the sensor from carding machine |
Power | 10.5kw-15.4kw |
Weight (1520mm) | 2000kgs |
Linyi Yuelong Nonwoven Equipment Co., Ltd. specializes in the research, design, production, and exportation of a full line of non-woven equipment. Offering both standard and customized products, our non-woven machinery is often used for the production of mattresses, shoes, bedding and more. Using raw materials from only the most trusted names in the industry, such as Schneider, we guarantee the quality and reliability of each of our machines in meeting your exact needs.
