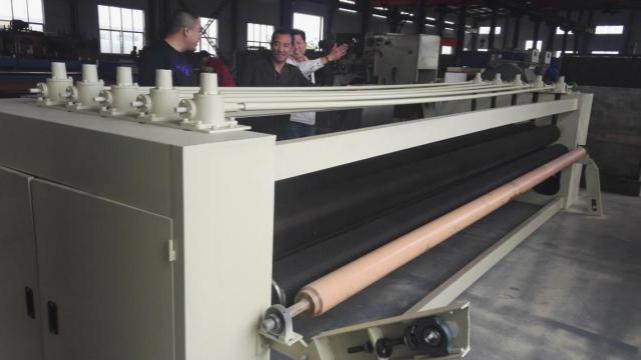

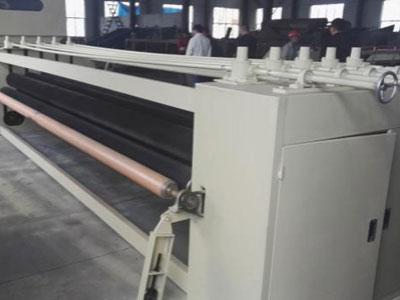

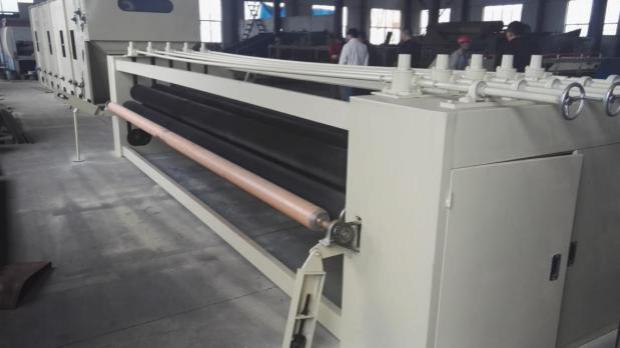

Web Card Stretching Machine
This multi-axle stretching machine is mainly used after cross lapper to stretch the fiber web, increase the transverse tension and longitudinal tension of fiber web, improve the stacked structure of fiber web and increase the toughness of fiber web. The fiber web processed by multi-axle stretching machine will be transported to needling machine for next process. Multi-axle stretching machine can be used to process common nonwovens fibers, such as terylene, chemical fiber, pure cotton, etc. The parameters of multi-axle stretching machine we manufactured are listed below.
- Working width: 2800mm
- Drafting groups: 7
- working Speed: 1~10m/min
- Drafting rate: 1~5
- speed control: separated
- machine weight: 4000kg
- Conveyor: PVC belt
- Motor:
- 2.2kw *7 each group controlled by one motor, 7groups in total ;
- 3.0kw*1 Up & Down rollers distance control
- Inverter: SINEE
- SINEE: Covered by carding cloth
This is only one type of multi-axle stretching machine we manufactured, contact us for other type that can better suit your needs.
Linyi Yuelong Nonwoven Equipment Co., Ltd. specializes in the research, design, production, and exportation of a full line of non-woven equipment. Offering both standard and customized products, our non-woven machinery is often used for the production of mattresses, shoes, bedding and more. Using raw materials from only the most trusted names in the industry, such as Schneider, we guarantee the quality and reliability of each of our machines in meeting your exact needs.
